Plant Design



Pan No2 Gas Extraction

Pan No2 Gas Extraction was designed for Zinifex Port Pirie Smelter in 2005.
The aim of the project was to design new exhaust system to improve the air quality around PA2 area. A new exhaust system consisting of different sections (round, square and rectangular), number of inspection hatches and hoods were designed to remove contaminated air from the specified area.




Model - Autodesk Inventor.

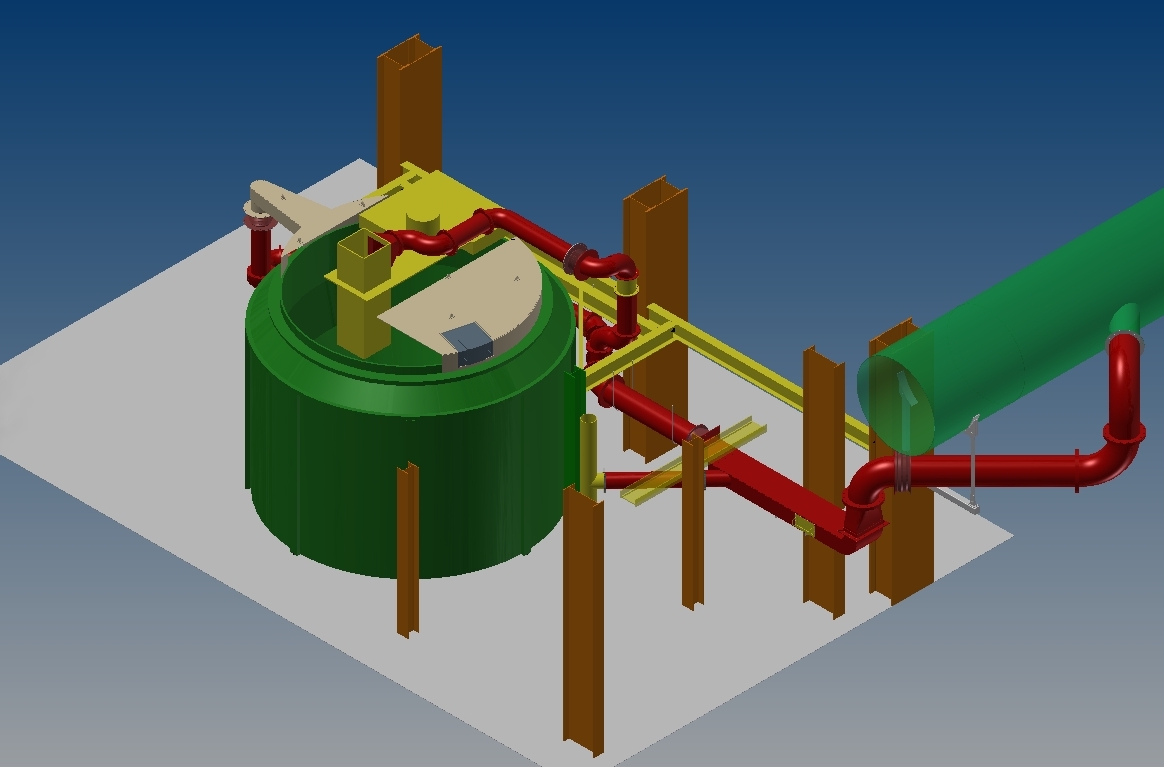

General Arrangement






Manufactured Extracting System at Zinifex site
View on new hood over the Pan No.2.


Bartco Design Pty Ltd

Ph. 08 8289 7752
Fax.08 8289 7852

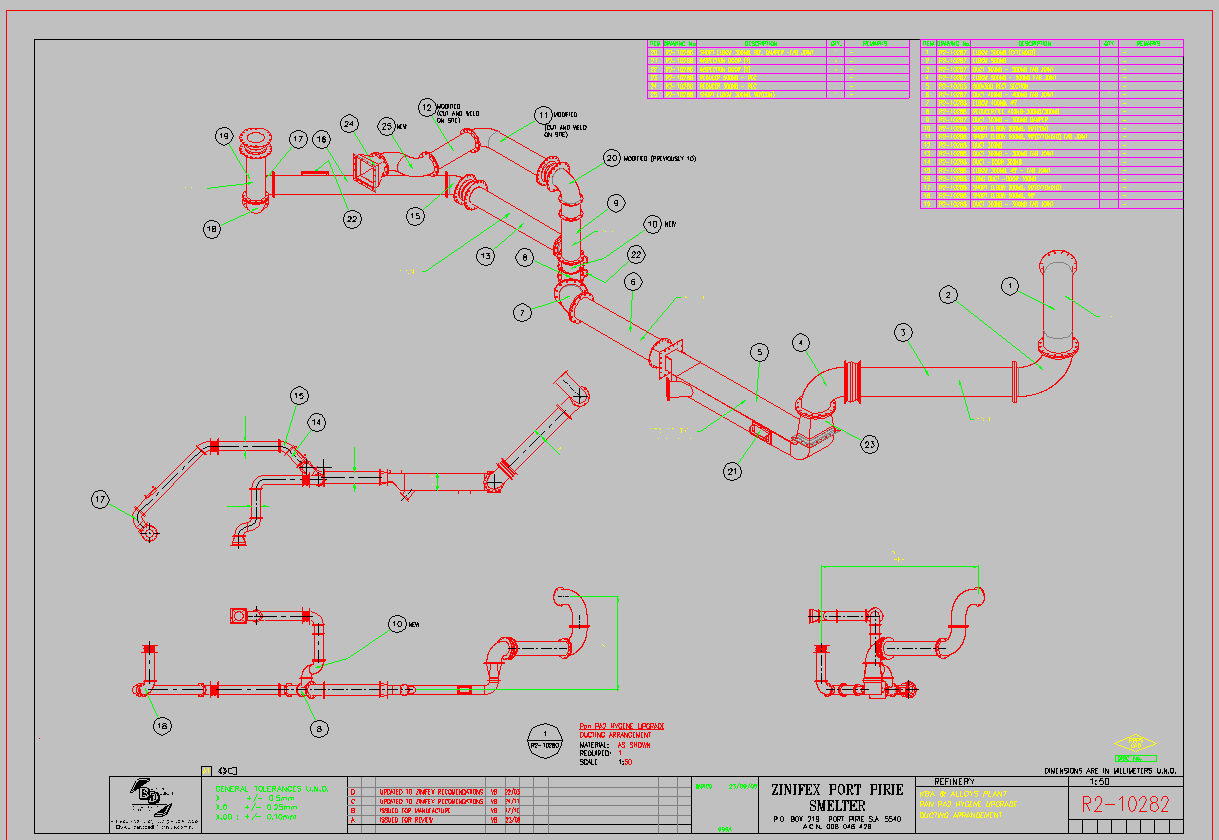

Piping Arrangement.





Manufactured Extracting System at Zinifex site
View on new ducting and the inspection hatch below the Pan No.2.
