Static Guarding for Vibrating Screen No.1&2 - (Iluka Resources 2011)
The aim of the project was to design guarding for vibrating screens at Iluka Resouces site.
The project involved designing more than 40 pieces of guarding, new supports, new gates, etc.
Model - Autodesk Inventor

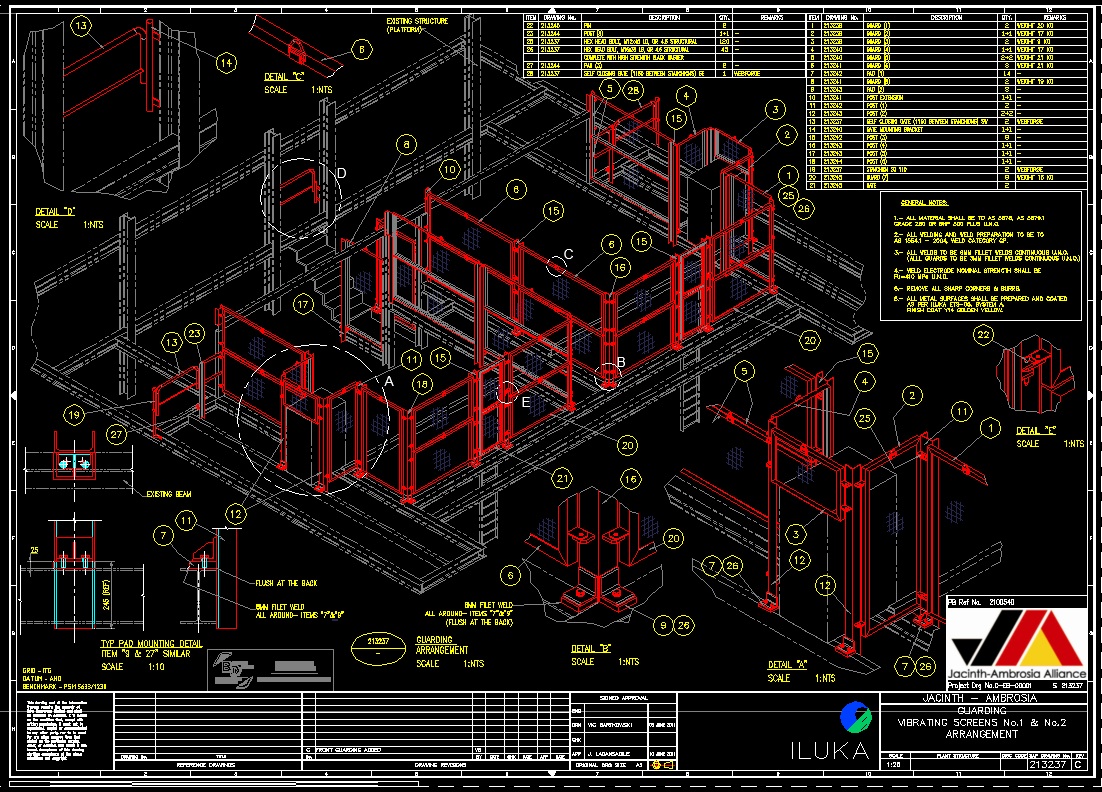

Layout / Section Views
